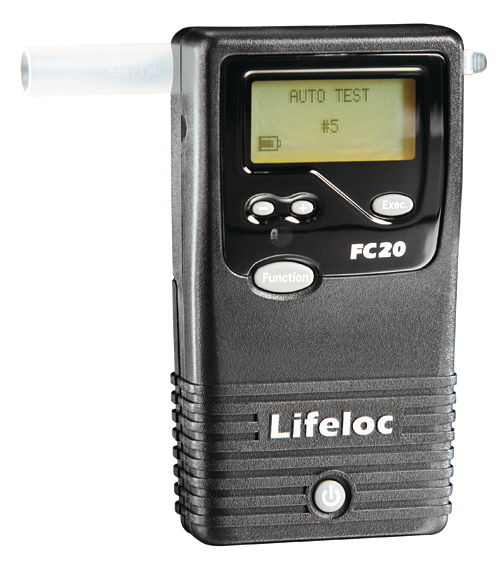

FC20 Technical Specifications
Sensor
High Quality Advanced Electrochemical Fuel Cell -Alcohol specific. Largest in its class.
|
Pump
Automatically actuated electronic pump system. No cocking required. |
Units of Measure
BAC Standard. Factory can set to any other common unit of measure. |
Response Time
Immediate on negatives, under 10 seconds on positives. |
Recovery Time (ready for next test)
Immediate on negatives, under 30 seconds on positives. |
Accuracy
DOT Approved at +/- .005BAC to +/- 5% above a .100BAC. |
Operating Temperature Range
Widest Operating Temperature 32-130F degrees F (0-55C)
|
Self Diagnostics
Programmed self-check assures unit is operational upon power-up. |
Size
2.6 x 5 x 1.25 inches (66 x 127 x 33 mm). |
Weight
.56 lbs. (255 grams) |
Warranty
One year limited warranty; parts and labor. |
Detection Range
.000 to .600 BAC |
Power
4AA Alkaline Batteries or Rechargable. Up to 8000 tests per battery set. Internal Lithium battery powers real time clock (FC20). |
Display
1.7 x .85 inch viewing area graphic LCD. Extended temperature range. Automatic backlight for nighttime use. |
Mouthpieces
Disposable. |
Memory
Permanent data storage survives on/off function or battery removal/failure.
Last 2000+ test retention and associated test data (FC20) |
Printer (included with kit)
Thermal or Impact Printer. |
