Timed Alert Tones and Relay Control with Viking’s Model CTG-1A
HUDSON, WI – November 13, 2018 - Viking’s CTG-1A produces scheduled alert tones over an existing paging system, and can also operate relays at specific times.
“Time is an invaluable commodity and keeping to a schedule increases productivity. The CTG-1A is a productivity tool and you will see results.” – Bill H. President, Viking Electronics

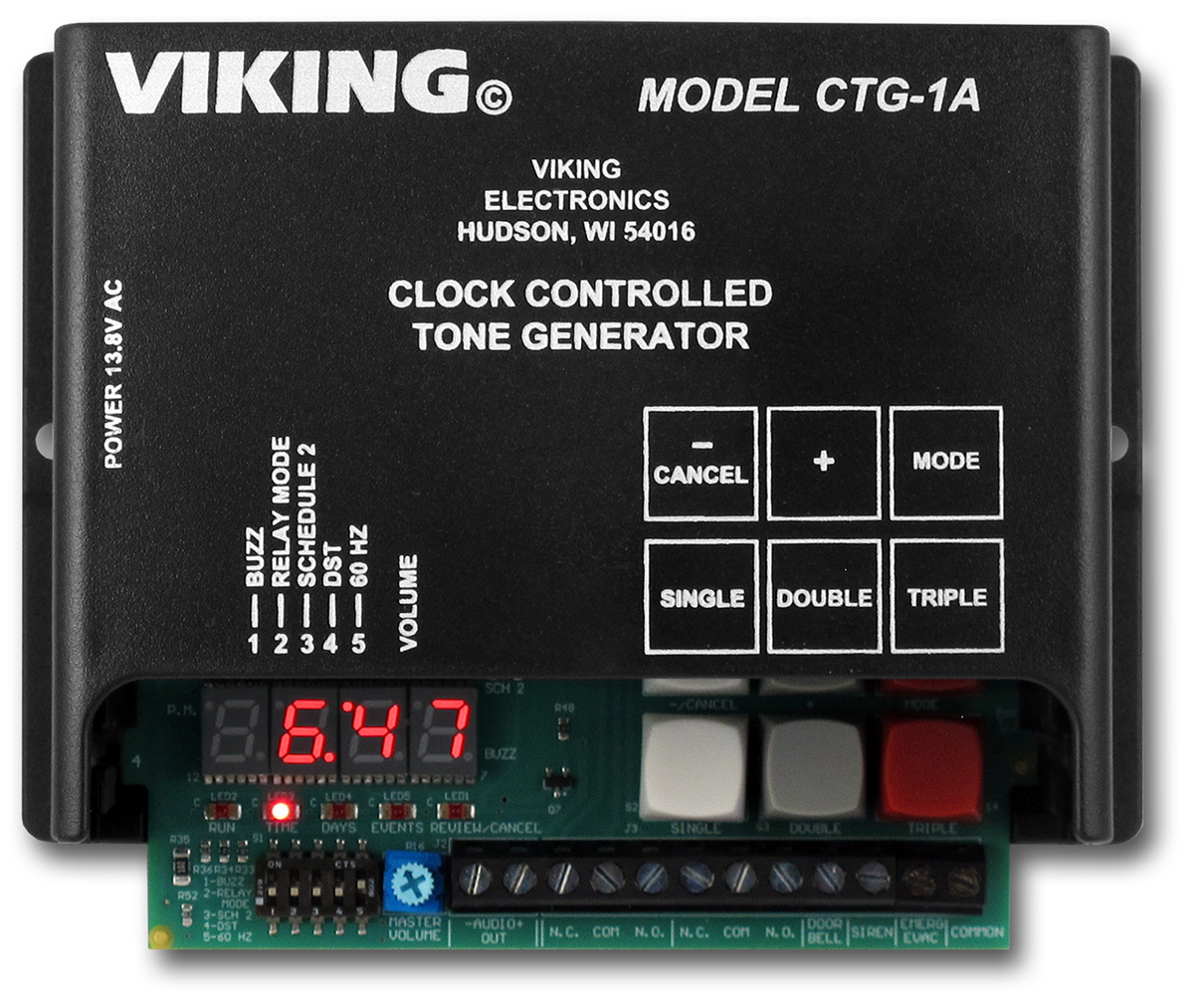

The CTG-1A is a clock-based scheduling unit that can produce single, double or triple bong/buzzer alert tones, or the unit can latch and unlatch two form C relay contacts at pre-programmed event times. Two switchable schedules each store up to 128 pre-programmed events. Three trigger inputs have pre-loaded sounds for on-demand playback of an Evacuation Whoop, an Emergency Siren, or a doorbell chime. A 600 Ohm audio output can send tones to a paging amplifier for playback over a public address system.
An easy to use programming interface on the chassis of the CTG-1A allows users to quickly program events, the day of the week and time of day. The CTG-1A time syncs with AC power for accuracy and a Daylight Savings Time switch adds an hour to the current time when turned on. Event times and tone selection are set from the same on-chassis interface. Dip switches determine if the CTG-1A will produce bong or buzzer tones, operate in “send tones” mode or “timed relay’ mode, and which schedule of events is active.
For more information on the CTG-1A, visit: https://www.vikingelectronics.com/products/ctg-1a/
Viking Electronics designs and manufactures over 500 communication and security products, including VoIP and analog emergency phones, entry systems, paging interfaces, paging amplifiers, mass notification systems, hot line products, and enclosures. Many Viking products are designed to fix or add unique features to telephone or security applications, keeping costs down while maintaining ease of use. All Viking products are designed, manufactured and supported here in the USA, and are backed by a two-year limited warranty. For more information, please visit: www.vikingelectronics.com
