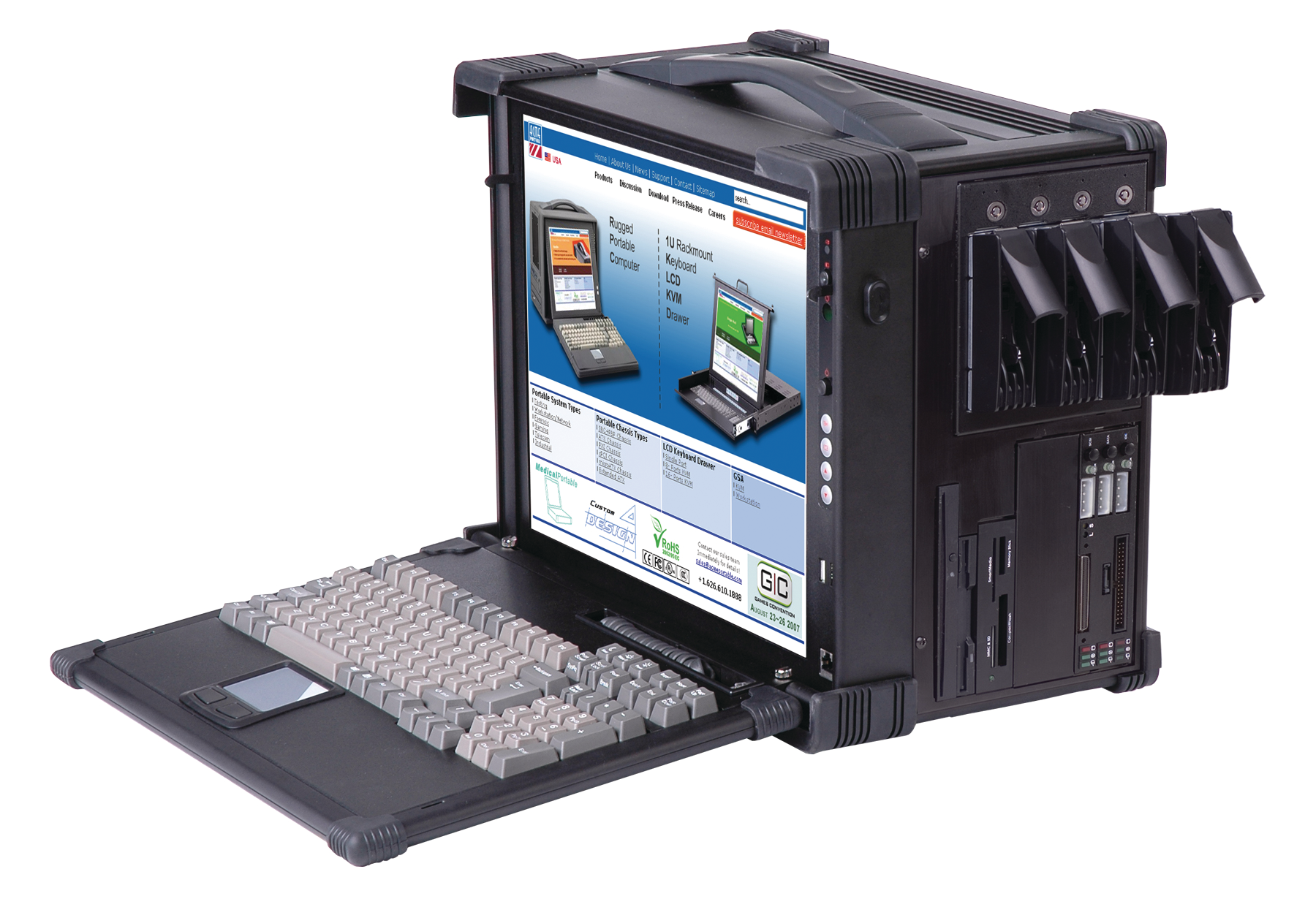

The art and science of computer forensics - capturing images from "erased" drives, reconstructing files, etc. - do not always happen in a "CSI" laboratory. AFS370 is a portable computer forensic computer platform capable of simultaneouslycapturing evidence from offsite SCSI, IDE and SATA drives. Triple independently operating write-block bridges allow for inspecting three subject drives at once. Captured data and image is then outputted to the internal 2.0TB storage for analysis. The system utilizes Intel Core 2 Duo E6400 processor backed by 2 GB of RAM, Gigabyte LAN, USB2.0, IEEE 1394B, DVD-RW, and media-block card reader. Modular portable computers are a flexible solution for off site digital forensic applications.---ACME Portable Machines' lunchbox-style portable workstation is capable of capturing evidence from off-site SCSI, IDE and SATA drives - three at a time. Triple independently operating write-blocked Tableau bridges allow for inspecting three subject drives at once. A 2.13 GHz Intel Core 2 Duo E6400 processor backed by 2 GB of RAM (expandable to 8 GB) gives the AFS-370 the power of a workstation in portable form. Gigabyte Ethernet, USB 2.0 and Firewire (IEEE 1394B PCI) are incorporated to speed communications, and a 17-inch LCD displays status and results.
