Battery Saver Low Ripple HO

Feb. 2, 2012
  • 20 Amps Output
  • Ideal for power computer & MDT
  • Relay automatically switchs load from battery to power supply when A.C. line is applied
  • Removes load from vehicle battery
  • Low ripple, regulated output
  • 3 year warranty

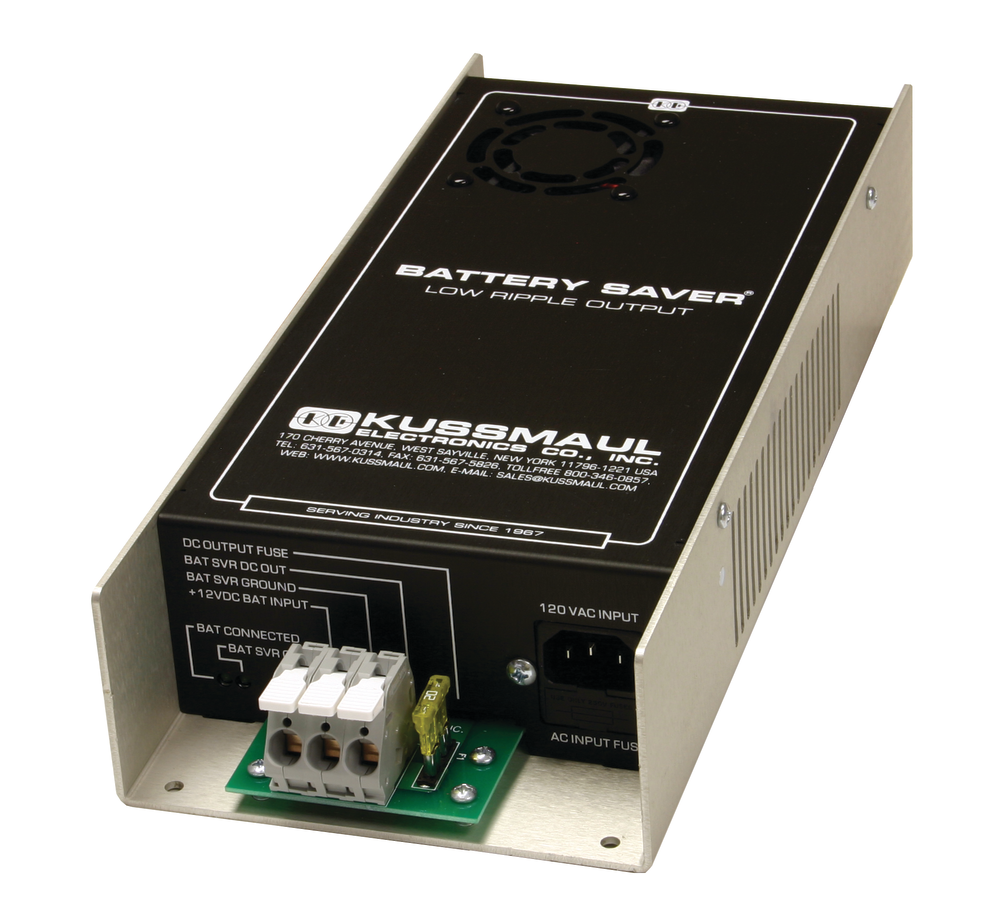

The Model 091-195-12, "BATTERY SAVER LOW RIPPLE HO," is a power supply with a load transfer relay. Inputs are the +12 volts from the vehicle's battery and 120 volts A.C. shore power. An MDT or computer may be connected to the output terminal. When shore power is applied a well-regulated switching power supply converts the 120 VAC to +12 VDC and a relay transfers the load from the battery to the power supply. This "BATTERY SAVER" provides low ripple D.C. power to ensure no interference while powering sensitive electronic equipment.

SPECIFICATIONS:

  • Input: 120 Vac, 50/60 Hz, 1.8 Amps Max RMS
  • Input Fuse: 5 AmpsOutput: 12 Vdc, 20 Amps
  • Output Ripple: 30 Millivolts, AC, RMS
  • Output Fuse (Recommended): 40 Amps
  • Electronic Current Limit: 20 Amps
  • Indicator: Power "ON", LED
  • Weight: 5 pounds
  • Warranty: 3 Years
