    High-Gain Yagi Directional UHF Antenna for RuralConnect CPE

    March 20, 2013
    Related To: CARLSON WIRELESS TECHNOLOGIES INC.

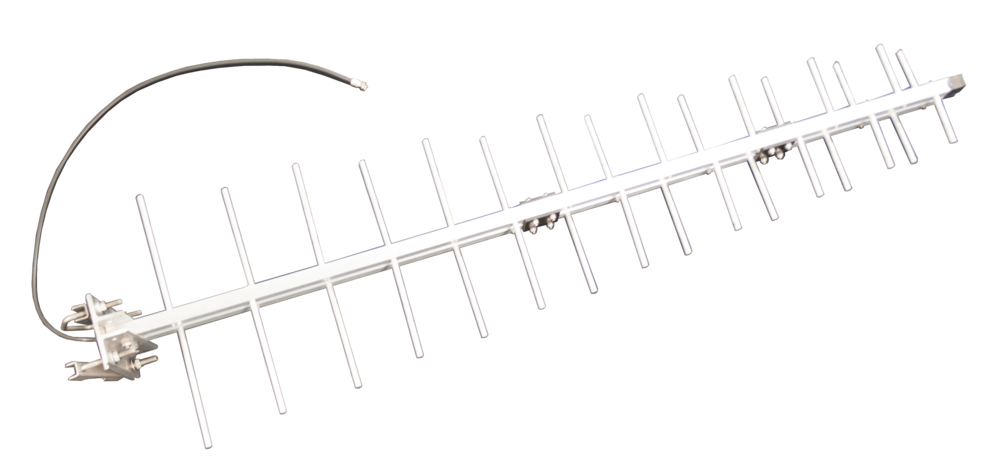

    High Gain Antenna1 10909148
    • Active Elements: 32
    • Element Diameter: 5/16-inch Beamwidth, 16• +/- 1dB
    • Gain: 12-14 dBi
    • Maximum Height: 14 inches
    • Maximum Width: 5 inches
    • Maximum Length: 51 inches
    • Polarization: Vertical or horizontal
    • Shipping Weight: 7 pounds
    • Carton Dimensions: 15 inches by 15 inches by 22 inches, 2 per carton
    • Connector: "F" type female
    • Output Impedance: 75 ohm or 50 ohm
    • Cable: 2-foot RG6 pigtail included
    • Wind Operational: 100 mph
    • Wind Survivable: 120 mph

    This log periodic directional antenna features narrow beamwidth for reduced co-channel and multi-path interference, as well as optimized high gain performance on longer paths. This antenna is rugged enough for mountaintops with up to 1inch of ice build-up.
