3X-C Magnifier

April 5, 2017

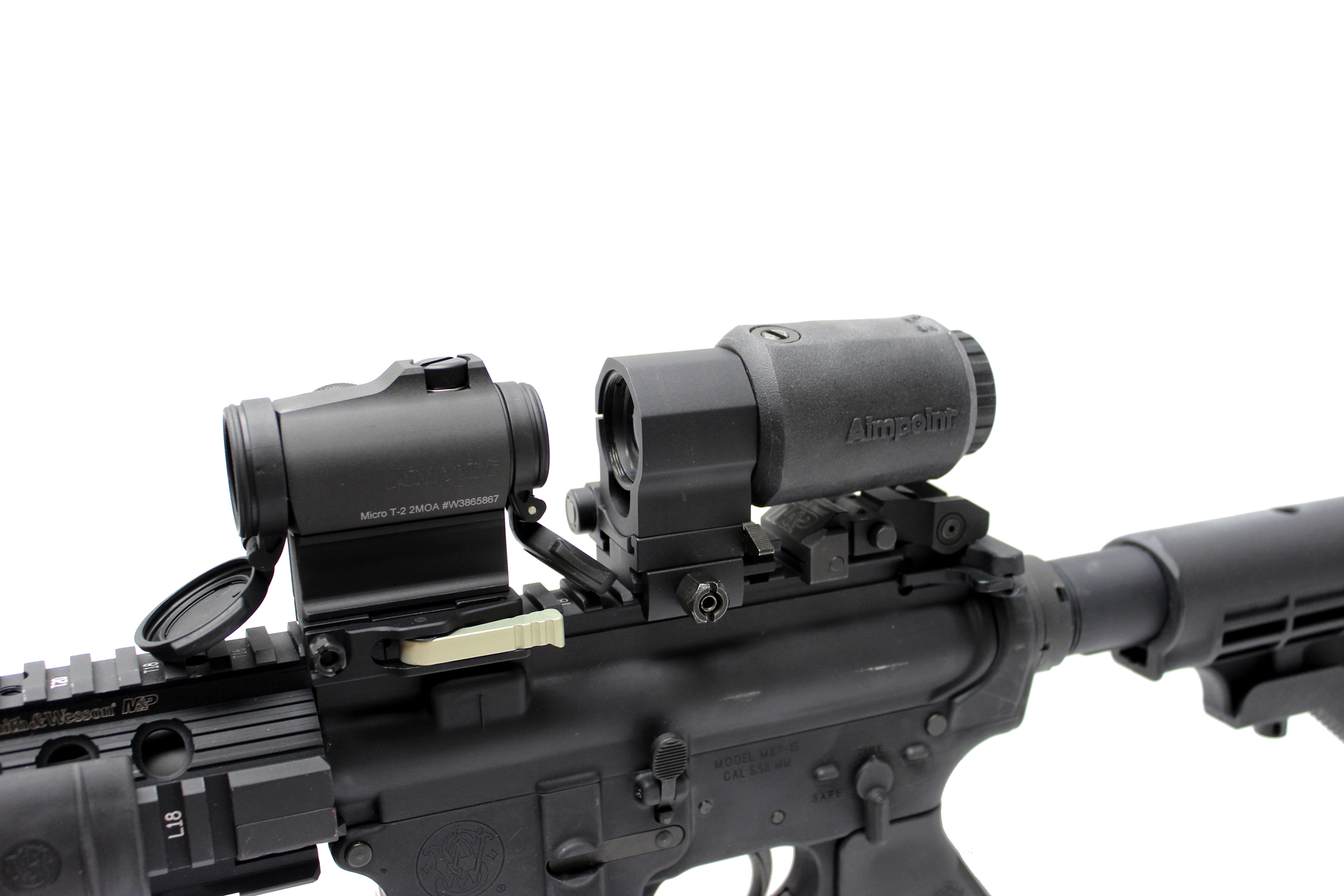

The Aimpoint® 3X-C was developed for the civilian end user, and can be used in conjunction with all Aimpoint® sights for longrange aiming or observation. A variable (-2 to +2) dioptric setting allows this magnifier to be adapted to the individual shooter's eye.

The 3X-C can also be used as a handheld 3X monocular. Aimpoint magnifiers utilize the red dot in Aimpoint sights as the aiming reticle, eliminating the need for re-zeroing when shifting between non-magnified and magnified aiming.

The 3X-C is encased in a shock absorbing protective rubber cover that also creates an ideal ergonomic grip. Internal optical adjustments make aligning the magnifier and sight quick and easy.

OPTICAL SPECIFICATIONS

  • Optical magnification: 3x
  • NVD compatible: Yes
  • Field of view (FoV): 6°
  • Exit pupil: 6.5 mm
  • Eye relief: 56 mm
  • Dioptric adjustment: ± 2.0 D

PHYSICAL SPECIFICATIONS

  • Length sight only: 103 mm (4")
  • Width: 45 mm (1 3/4")
  • Height sight only: 45 mm (1 3/4")
  • Weight sight only (incl battery): 220 grams (7.B ounces) including rubber cover

ENVIRONMENTAL SPECIFICATIONS

  • Temperature range operation: Operation at a temperature of -35°C to +55 °C
  • Temperature range storage: Storage at a temperature of -35°C to +55 °C
  • Temperature shock: From -25°C to +40 °C
  • Humidity: +40 °C, RH : 95 %
  • Immersion, static: Immersion to a depth of 0.5 m
